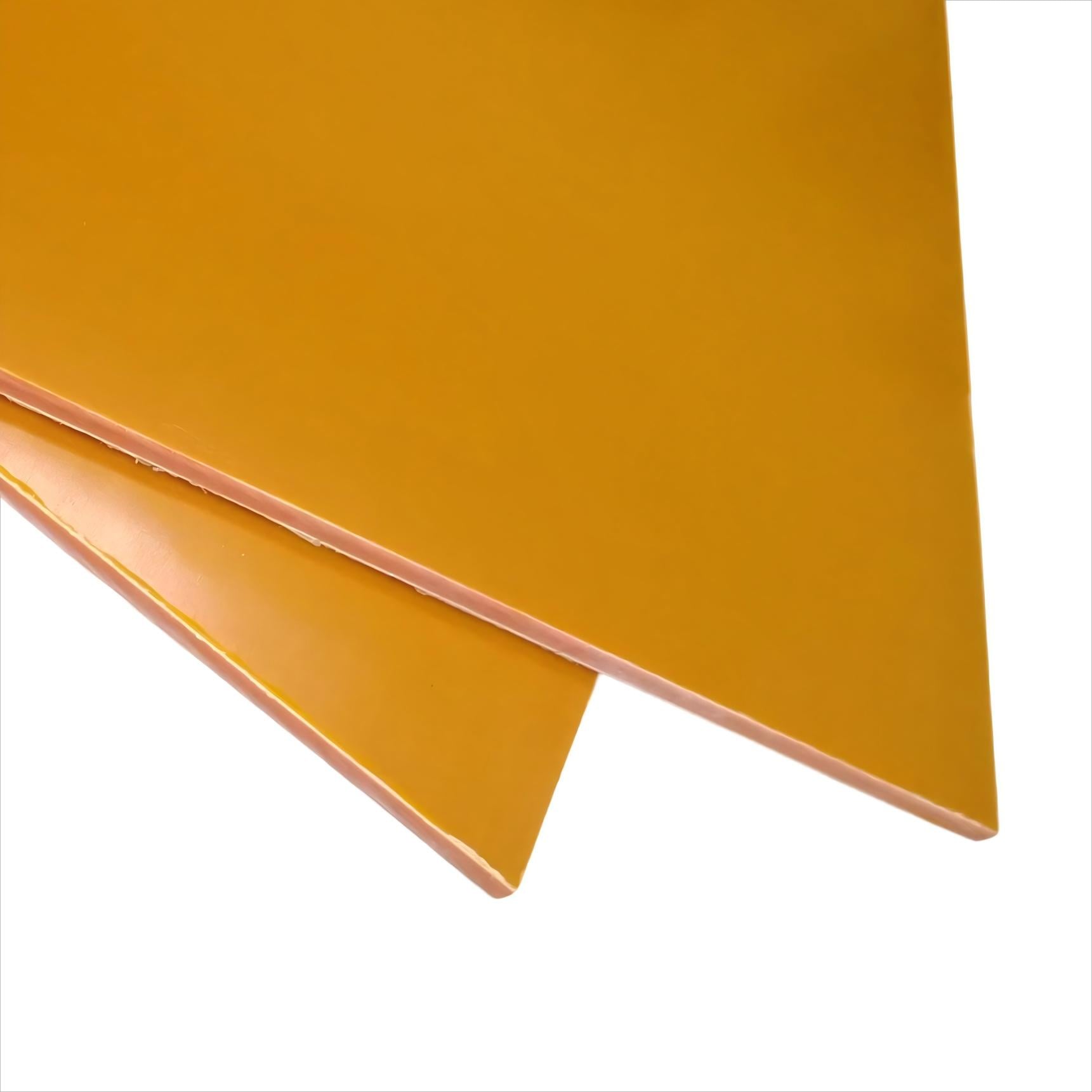

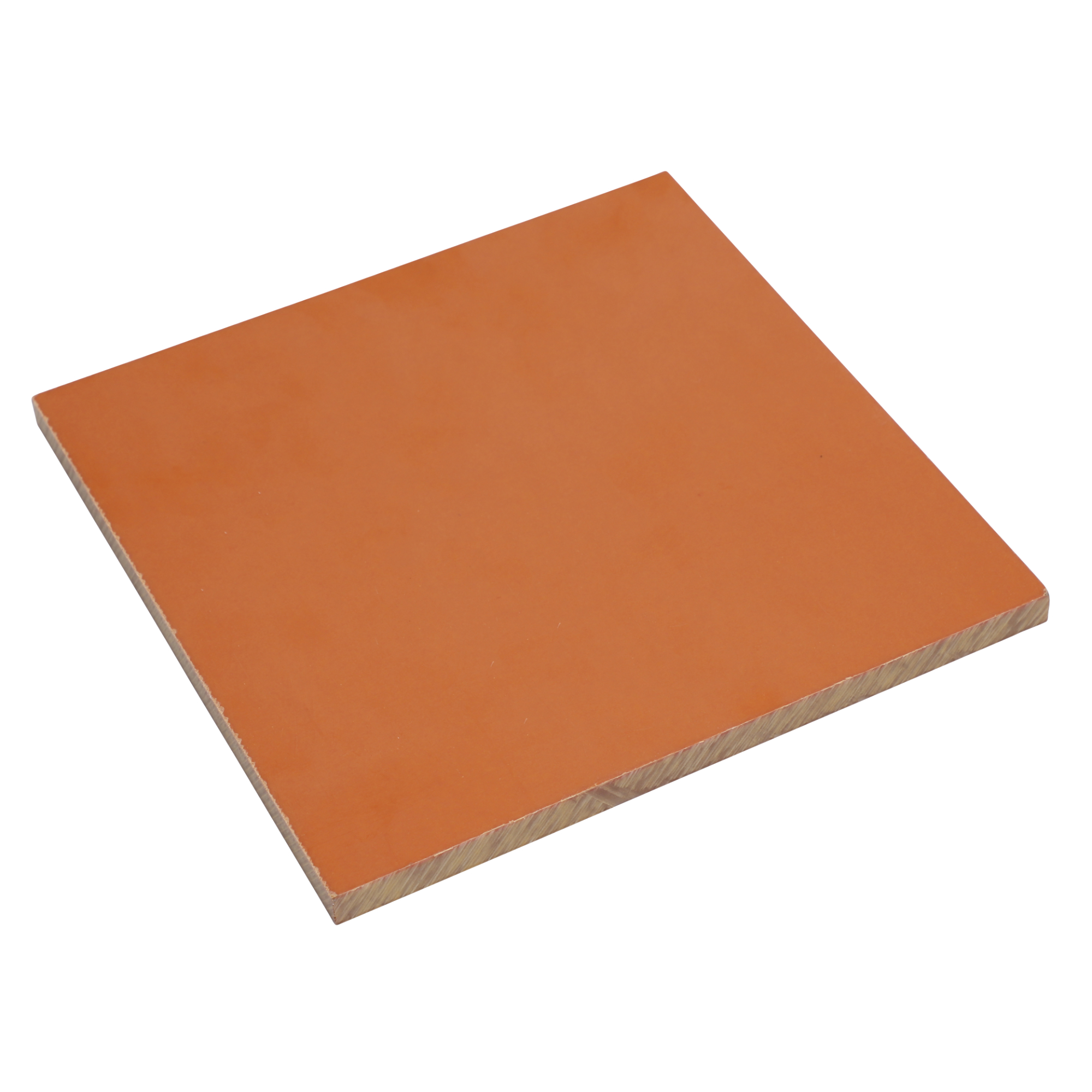

Phenolic Paper Lamiante

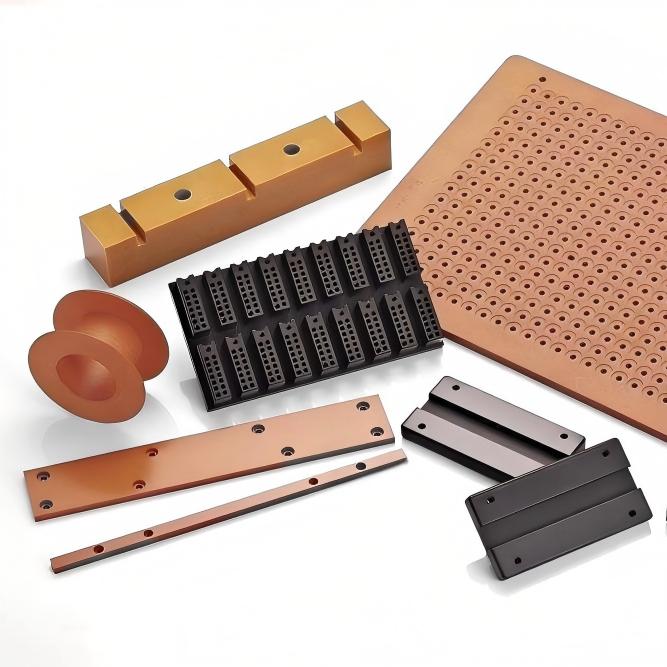

Made of insulation paper impregnated with phenolic resin in baking, pressing and curing. Widely used as insulating structure parts in motor, electrical equipment and can be used in transformer oil. Suitable for being the backup board for PCB, switch cabinet, jag board, die splint, packing machine, high frequency welding machine, forming machine, drilling machine and table grinding machine, etc.

Thickness range: 0.5-100mm
Standard size: 1020*1220mm, 1020*2020mm, 1220*2440mm
Color: Black, Orange, Natural
GOST Standard: 3020, 3021
IEC Standard: PFCP201, PFCP202, PFCP203, PFCP206, PFCP207
NEMA Standard: X, XX, XPC

3020, PFCP202: Primarily intended for higher voltage instruments, with good electrical properties in oil and under normal conditions, PFCP202 is better than 3020.

3021, PFCP203: 3021 and PFCP203 are suitable for mechanical & electrical applications, with good electrical properties in oil and under normal conditions;3021 and PFCP203 can be applicable for hot punching.

PFCP201, X：Primarily intended for mechanical use, extensively as test instruments of PCB and electric parts, applicable for hot punching

PFCP207, XPC:Primarily intended for cold punching and shearing, similar to PFCP201 but with good punching practice under lower temperature, used for drilling backup board, PCB supporting frame, and so on.
