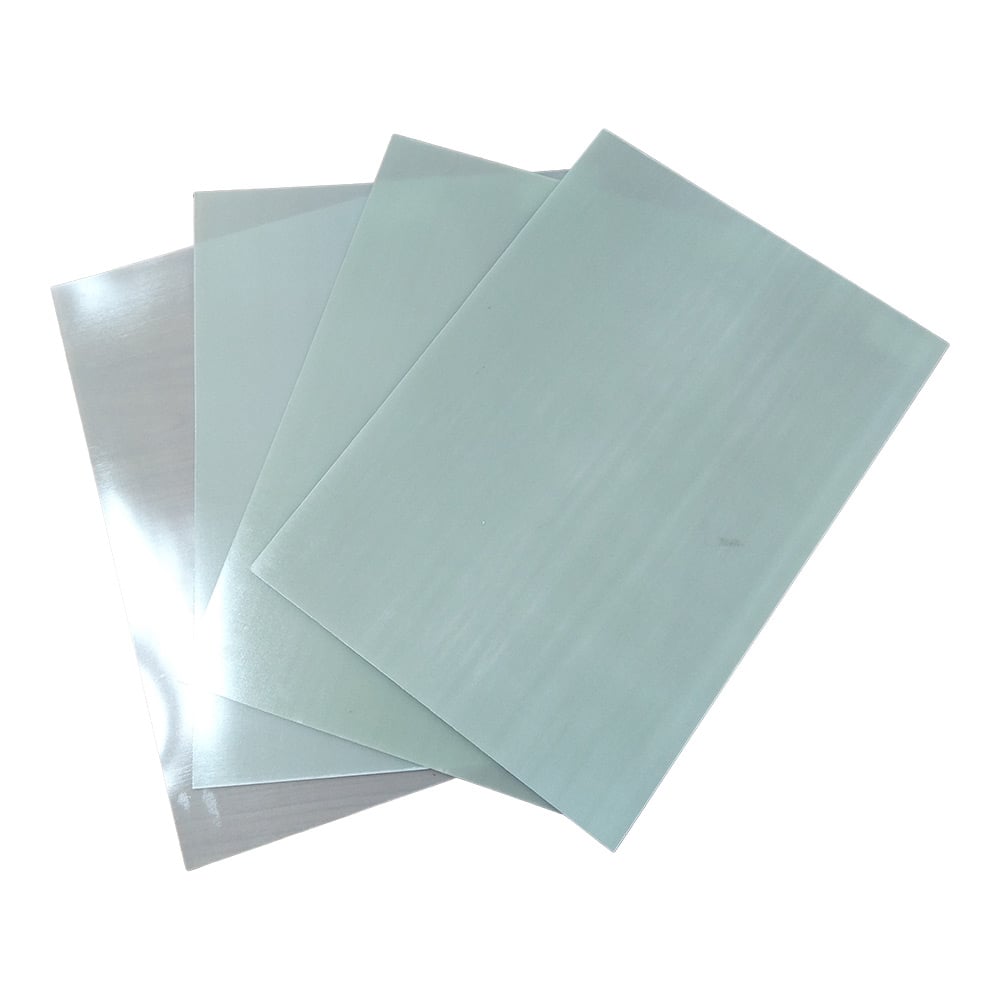

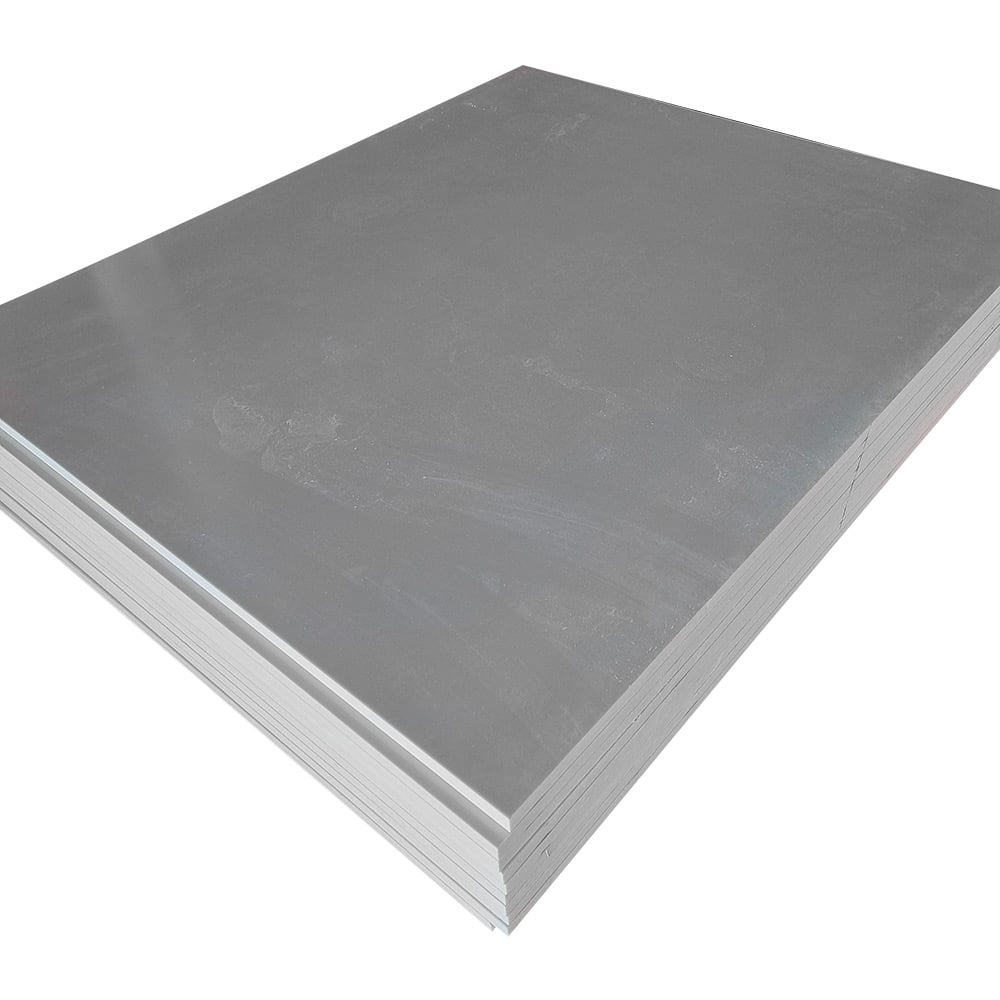

G7 Sheet
Standard size: 1020*2040mm
Thickness range: 0.5-50mm
TG≥180℃

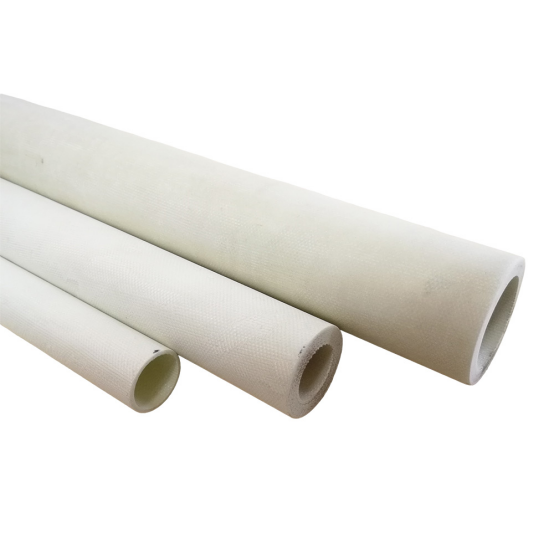

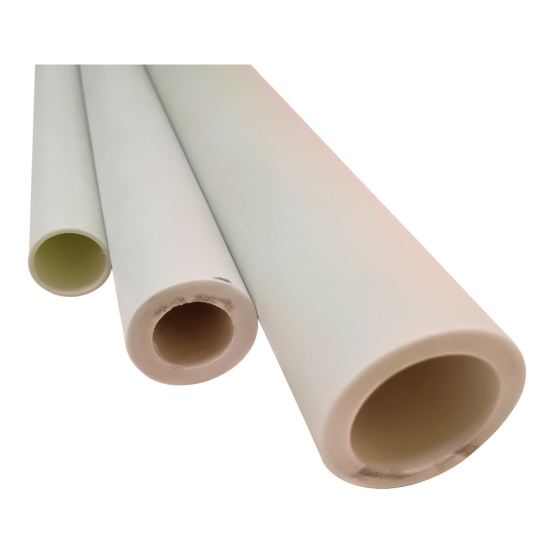

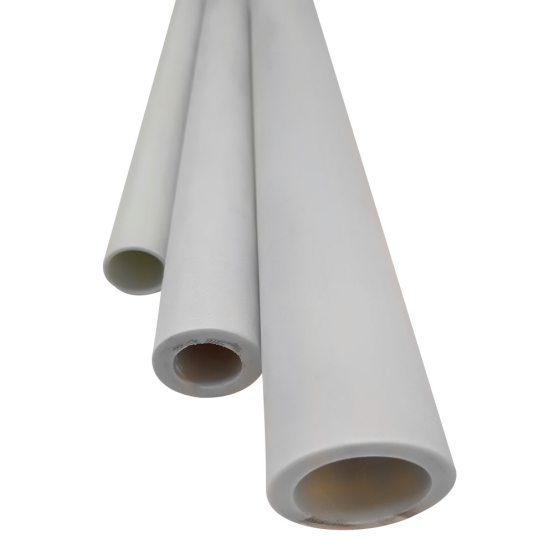

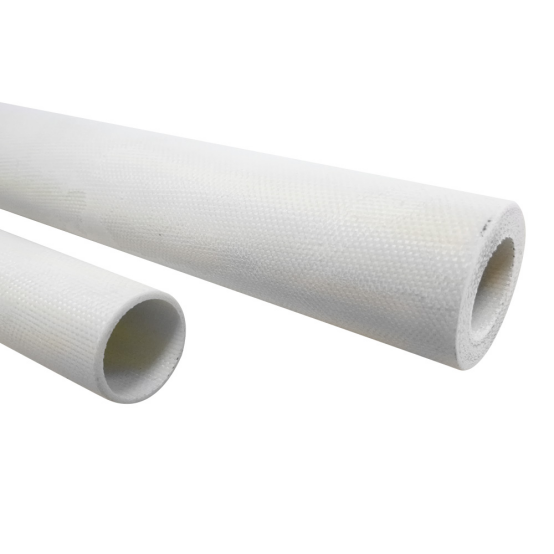

G7 Tube
Standard length: 1000mm
Wall thickness: 1mm (Minimum)
TG≥180℃
G7 Sheet and Tube
Composed by the silicone resin and fine glass fabric, laminated as plate and tube shape, primarily for electrical and mechanical purposes. With good arc resistance and flame resistance properties. Usually used as the insulating structural parts under high temperature and arc resistance working conditions.
Characteristics: G7 material has the characteristics of high mechanical strength, good arc resistance, good dielectric properties and heat resistance. TG≥180℃.
Thermal class: H
Applications: G7 sheets can be used as slot wedges for H-class motors, insulating structural parts in electronic applications, and arc-resistant high-temperature structural parts in electrical equipment.
