Silicon Mica Composite

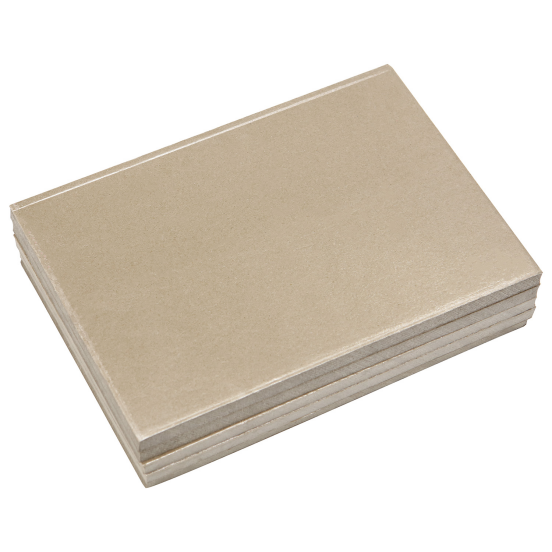

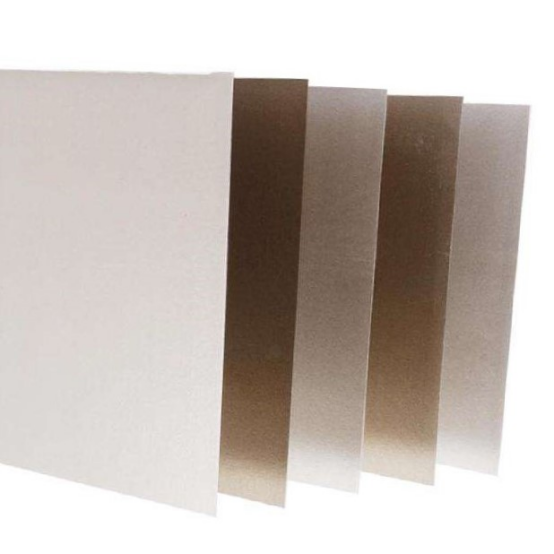

Mica Sheet:

It has rigid mica sheet and flexible mica sheet. Rigid sheet is a kind of rigid lamination material constructed of muscovite or phlogopite mica paper with silicon resin pressed and cured in the press machine. Flexible mica is a kind of flexible lamination material, having excellent dielectric, excellent tensile strength and easy to form at room temperature.

Thickness range:0.25-50mm
Standard size: 600*1000mm, 1000*1200mm
Temperature resistance: 500-1000℃
Type: Phlogopite, Muscovite

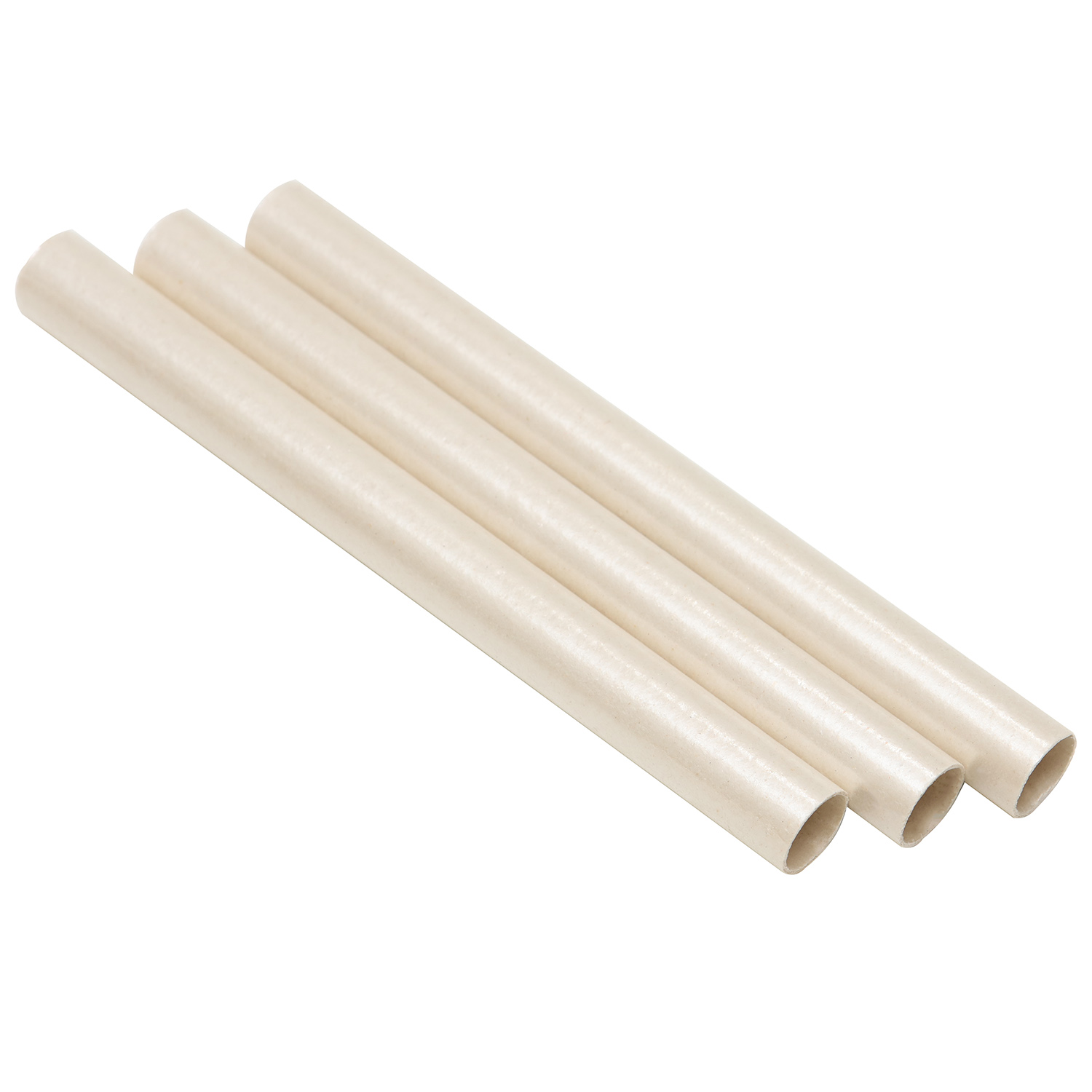

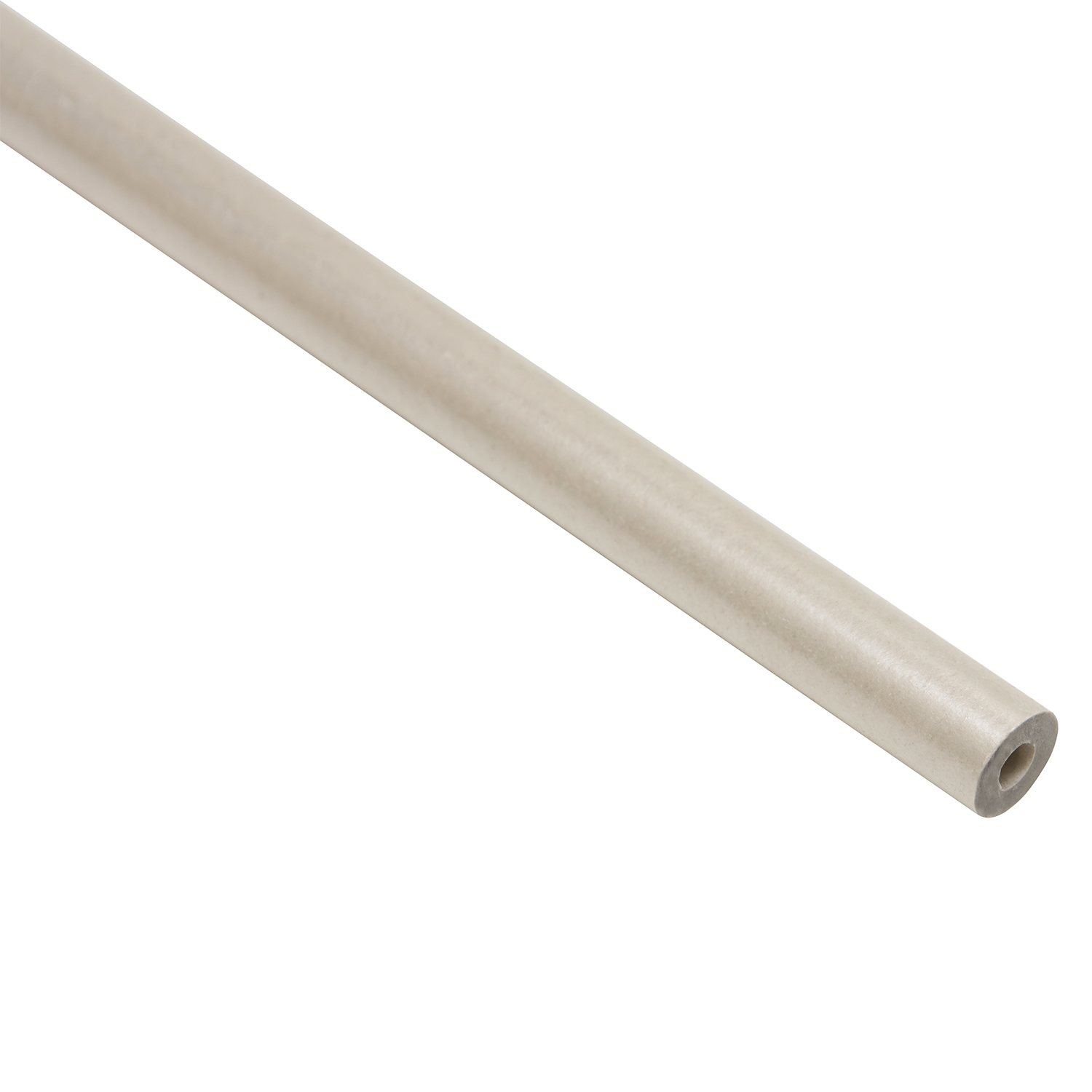

Mica Tube:

It is formed by muscovite paper or phlogopite paper fixed with silicon resin, and processed by roll form.Mica tube has good dielectric capability and excellent mechanical strength, and often used as the insulating tube form material in all kinds of electric equipment, motors, furnaces, electric-arc furnaces, other metallurgy industry equipment.

Wall thickness: 2mm (Minimum)
Standard Length: 500mm, 1000mm
Type: Phlogopite, Muscovite
